| Parameter Item | Specification |
|---|---|
| Insulation Strip | 20mm |
| Profile Thickness | 2.0-3.0mm |
| Frame Visual Surface | Frame: 60mm, Upper rail: 42mm, Lower rail: 42mm |
| Visible Surface of Mullion | - |
| Fan Visual Surface | Left and right fan: 86mm, Up and down: 68mm |
| Glass Specifications (Frame, Fan) | 8mm ultra-white + 22Ar + 8mm ultra-white |
| Accessories Brand | Juhe System independently developed |
| Window Screen Scheme and Mesh Type | - |
| Available Colors | Light sensitive skin black, Hepburn black gray, starry sky gray, Starbucks coffee |

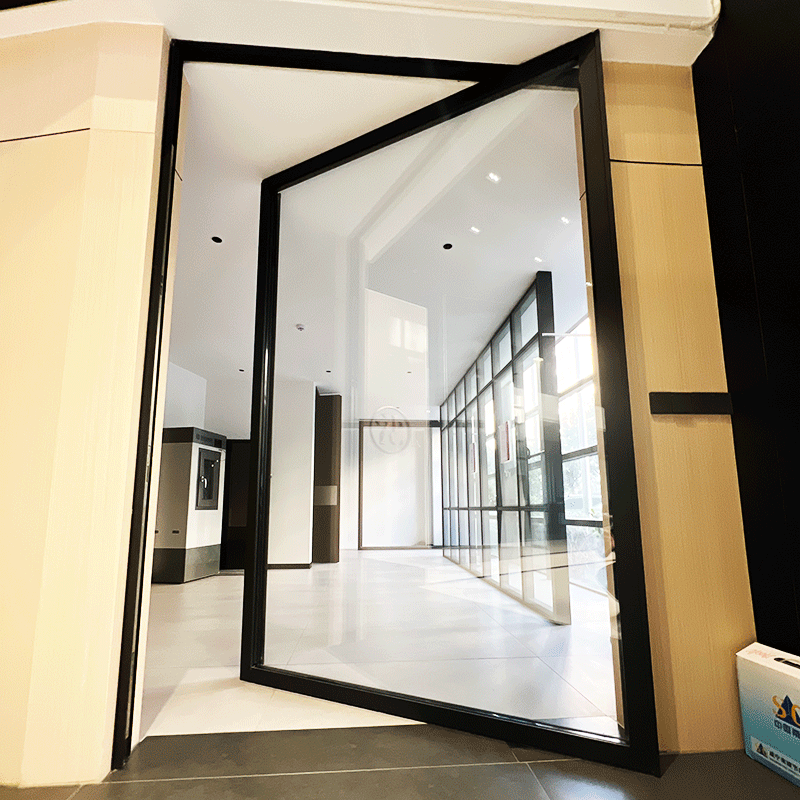

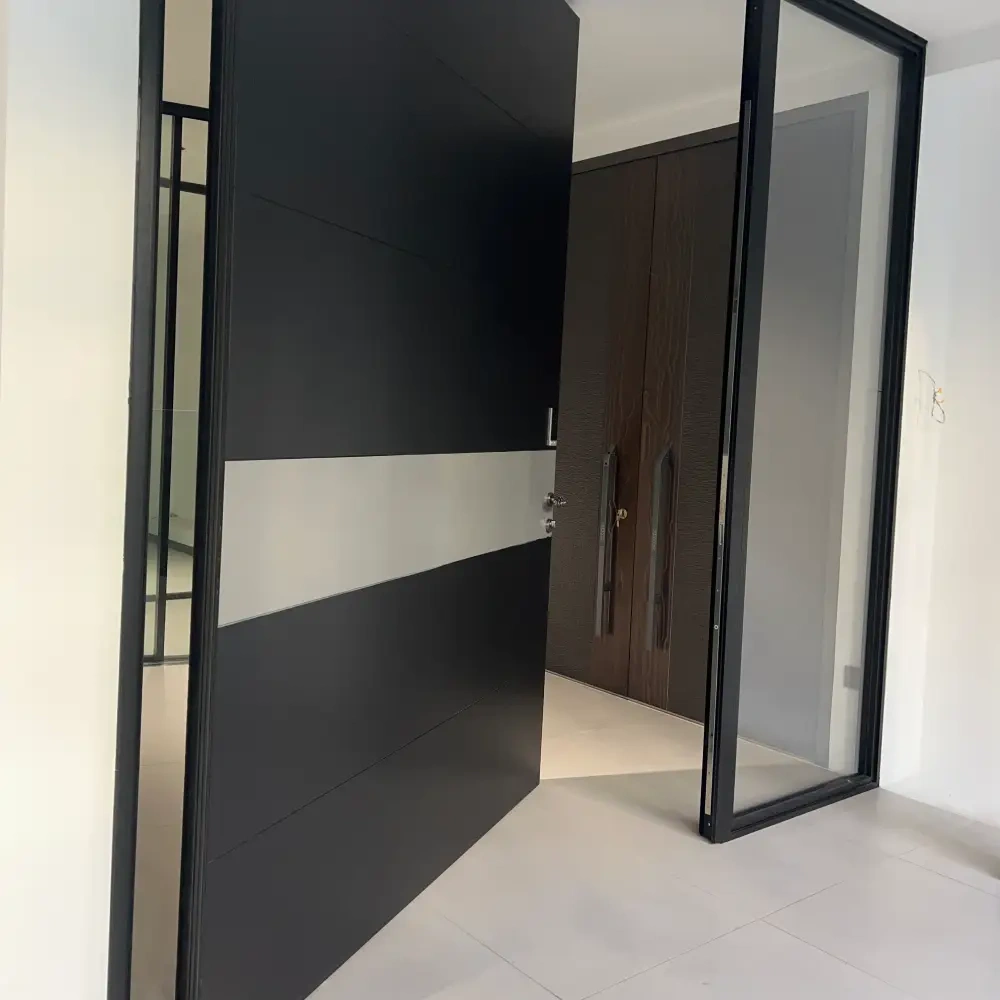

| Usage Scenario | Villa entrance door |
| Notes | Electric and manual options are available |
