Equipped with 44mm multi-chamber imported extra-wide thermal break strips and triple-pane double-cavity Low-E glass, delivering excellent thermal insulation performance with a U-factor (K-value) below 1.6 W/m²·K;
Fully compliant with North American NFRC certification requirements. Featuring triple weather sealing, 2.0mm profile thickness, and NARS-compliant glass, it meets North American AAMA (Hurricane) certification standards;
Supports multiple opening configurations: inward swing, inward tilt-and-turn, and outward swing.

Basic Product Parameters	Specifications
Insulation Strip	44mm
Profile Thickness	2.0mm
Frame Visible Width	66.6mm
Mullion Visible Width	72mm
Sash Visible Width	95.6mm
Glass Specifications (Frame & Sash)	5mm Clear Glass + 12A Air Spacer + 5mm Clear Glass + 12A Air Spacer + 5mm Clear Glass
Hardware Brand	Independently developed by Juhe System
Insect Screen Scheme & Mesh Type	--
Available Colors	Light-Sensitive Matte Black, Starry Sky Gray
Application Scenarios	Bedroom, Living Room
Notes	--

CONTACT US

If you have any queries, get in touch today! Don't hesitate. We try to take the extra step for our customer satisfaction.

First Name*

Last Name*

Email*

Message*

Leading Expert in Building Facade Systems

If you want to custom the unique project solutions for your building, Juheintl is your first choice. Send us your detailed requirements and get an instant quote now.

About Juheintl Group: About us
Services
Projects
Blog
Contact

Products: Curtain Wall Window
Panoramic Door&Window
Thermal Break Window
Sliding Lift Window
Offset Pivot/Sintered Stone Door
European Style Pavilion Solutions
Chinese Style Sunroom Solutions

Follow Us

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

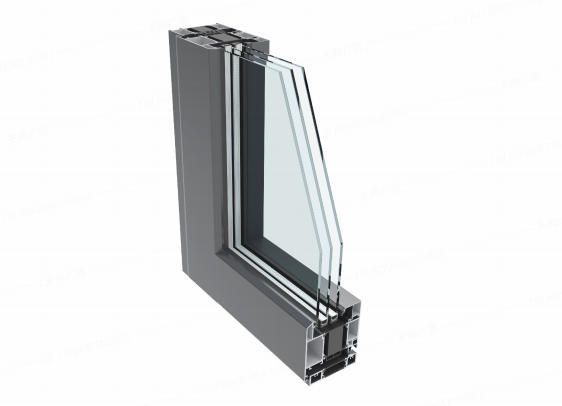

Door Series // Zenith 85 Series Thermal Break Swing Door

Description

Key Features

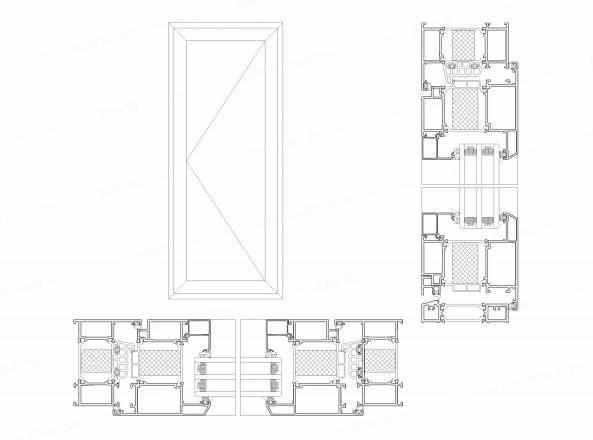

Typical Node Diagram
